布局查看器

• powerful tool for Android developers and UI designers
• 1. Layout Inspector is a tool for debugging and analyzing Android application interface layouts, which can display the hierarchy, properties, and performance data of views or Compose components in real time. Its main values include:
• Problem localization: Check layout nesting depth, property errors, or rendering exceptions. Performance optimization: Identify overdrawing, over-recomposition (Compose), or redundant views. Design verification: Compare deviations between design drafts and actual layouts.
• 2. Operation process:

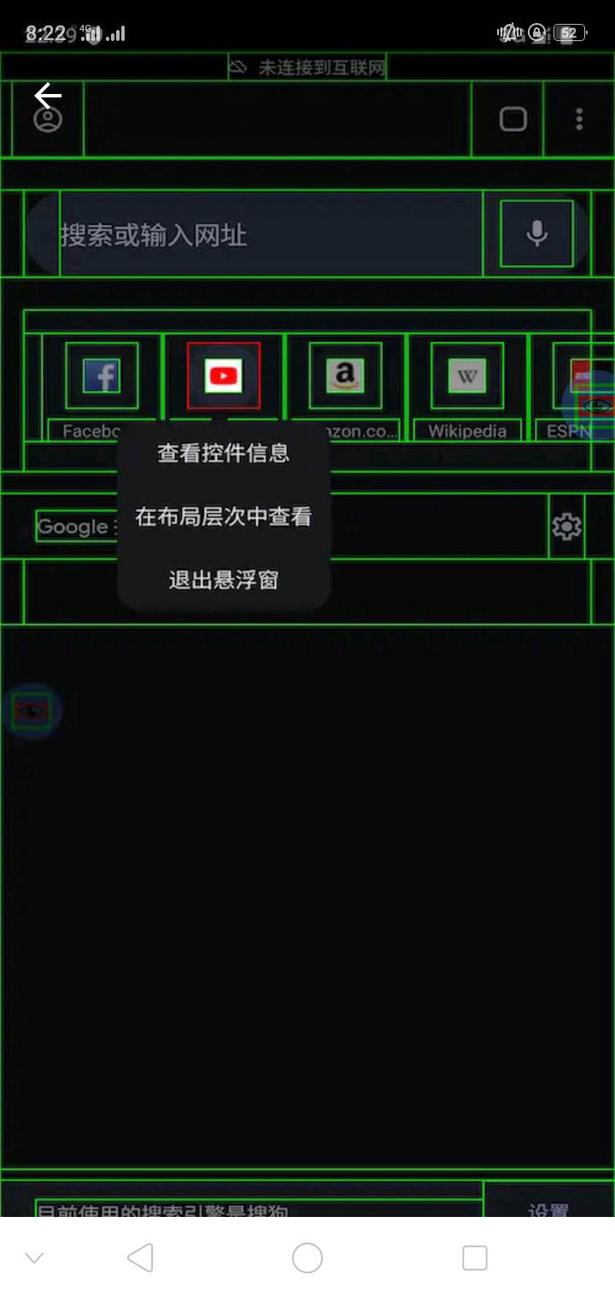

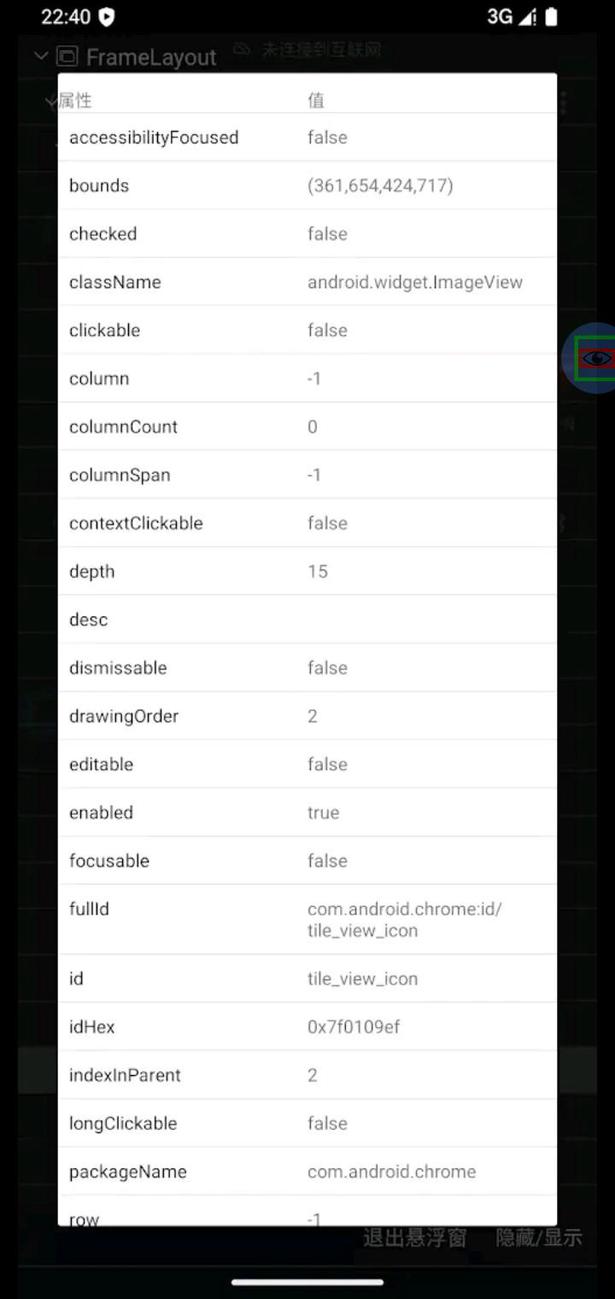

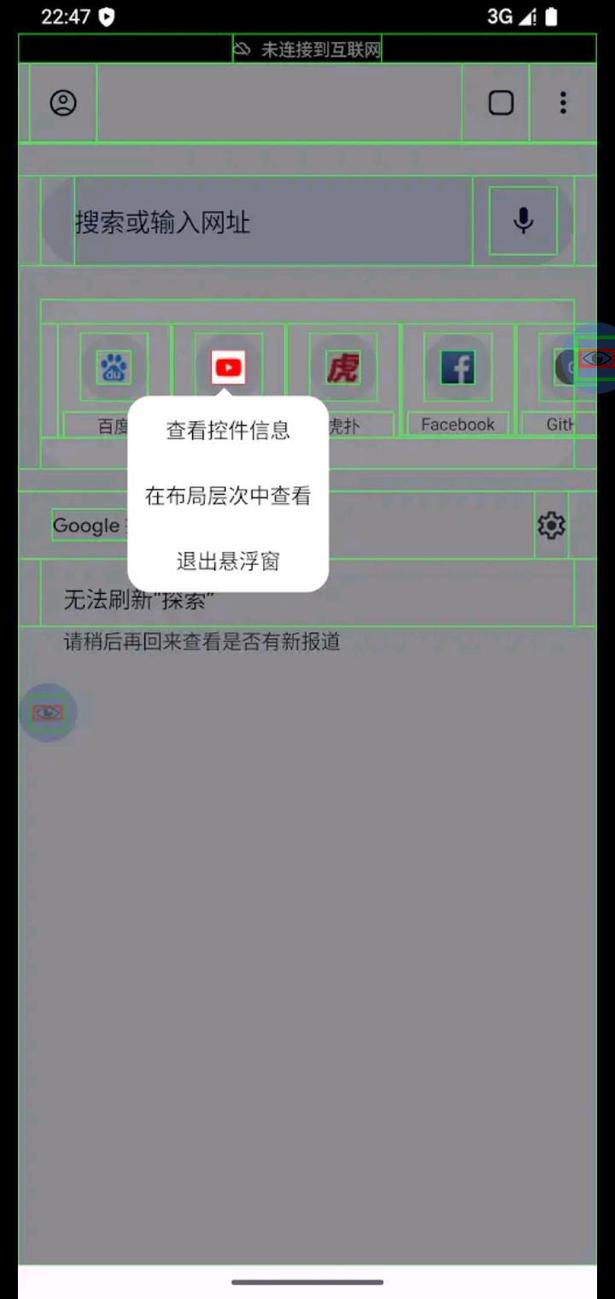

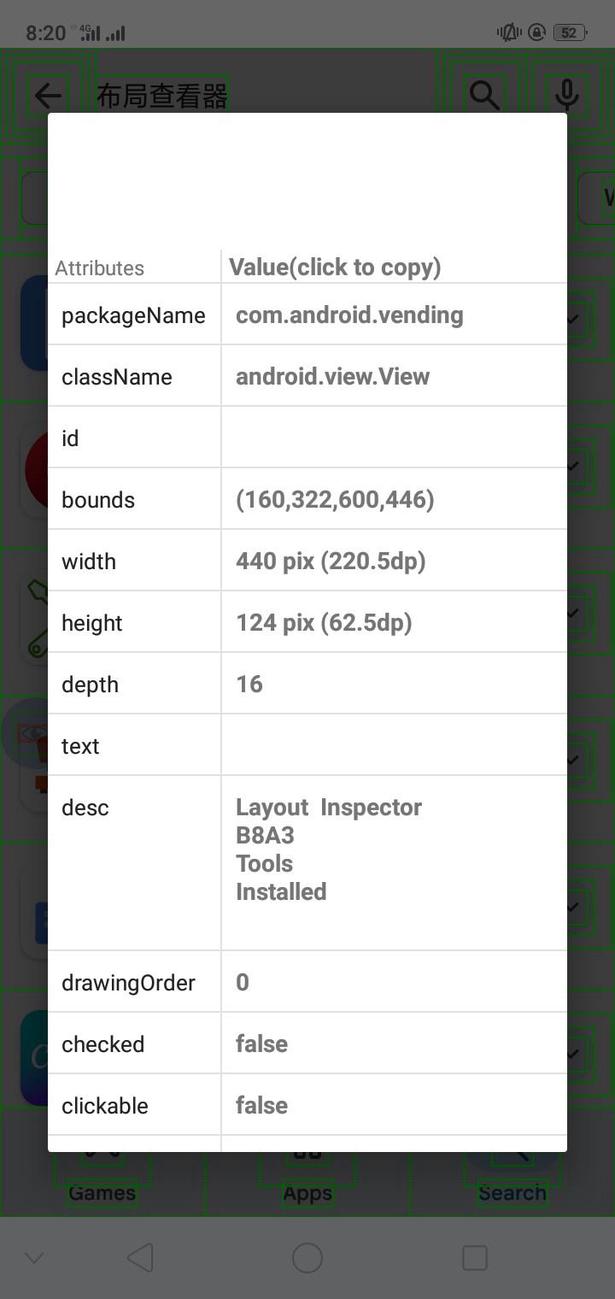

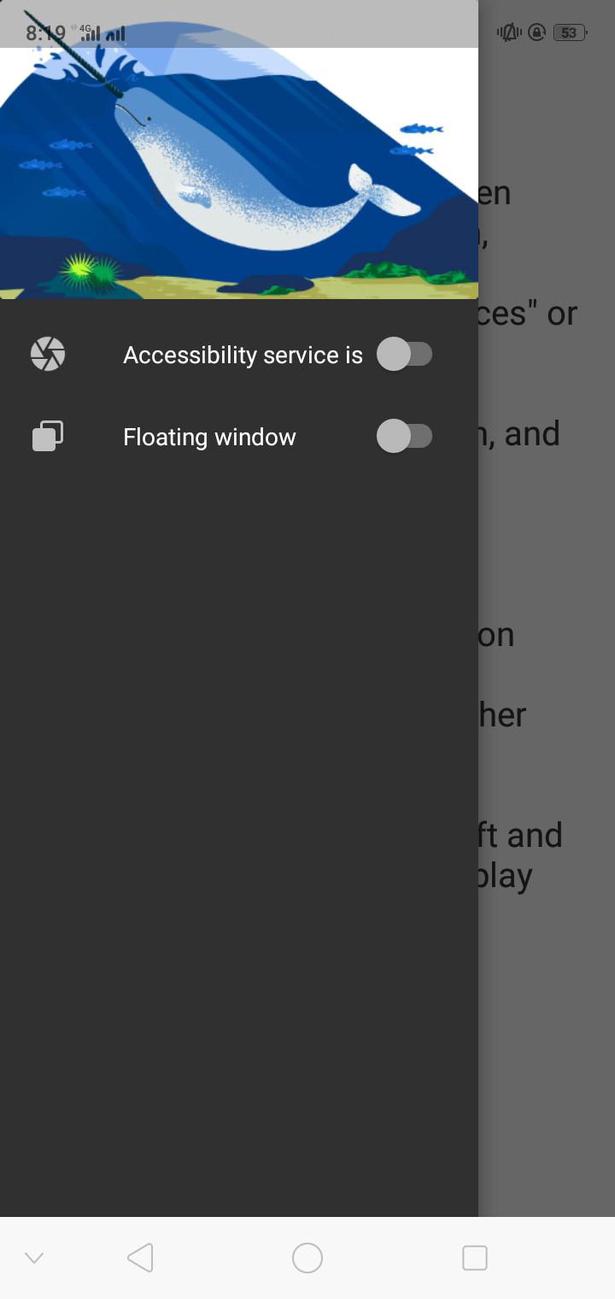

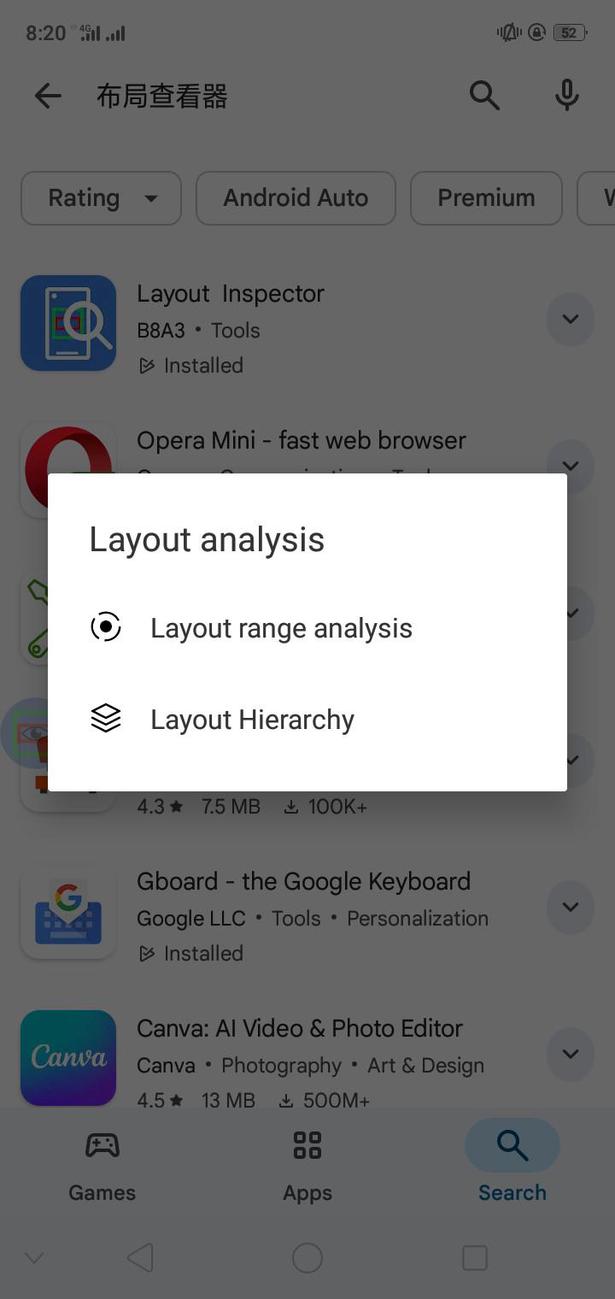

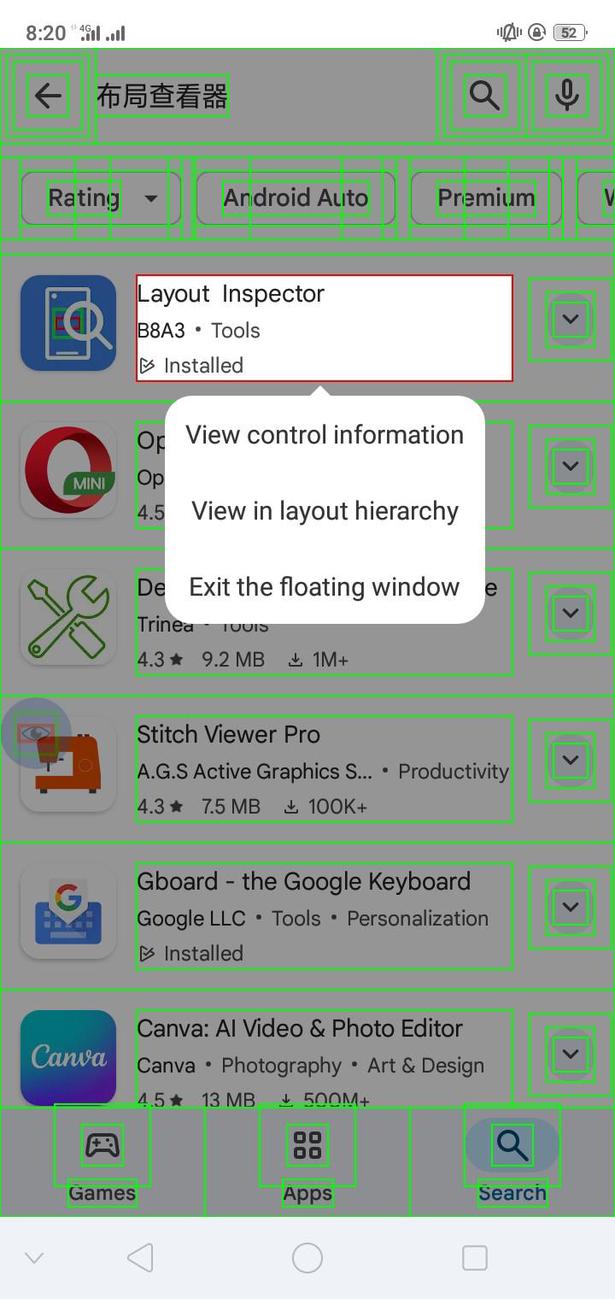

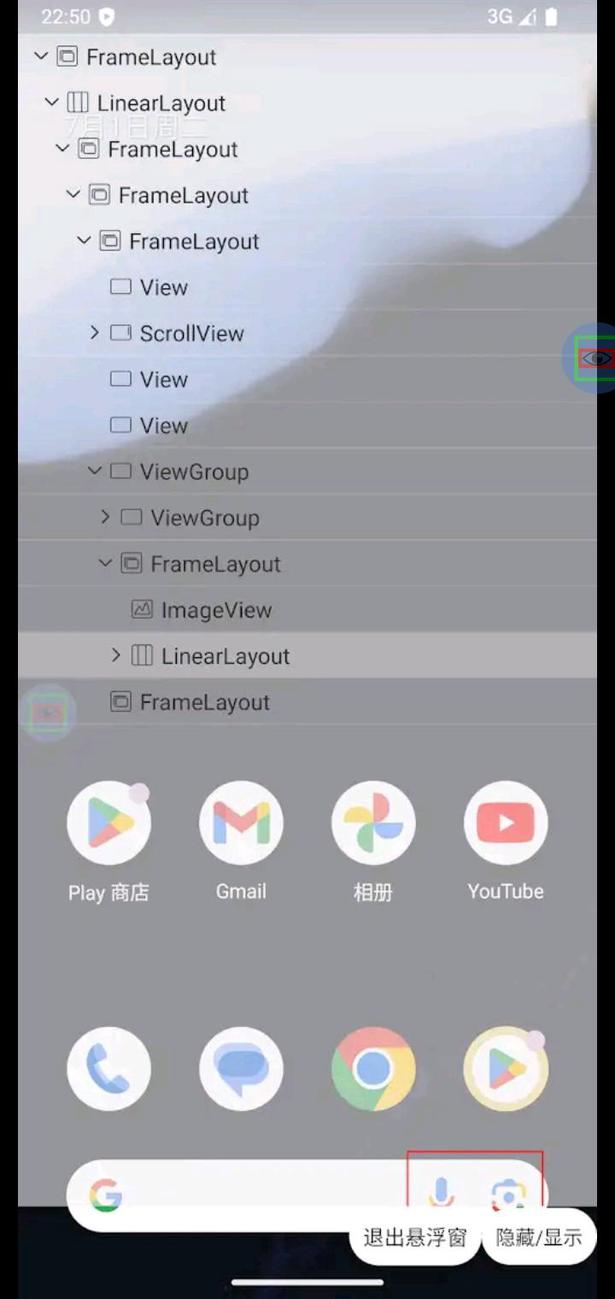

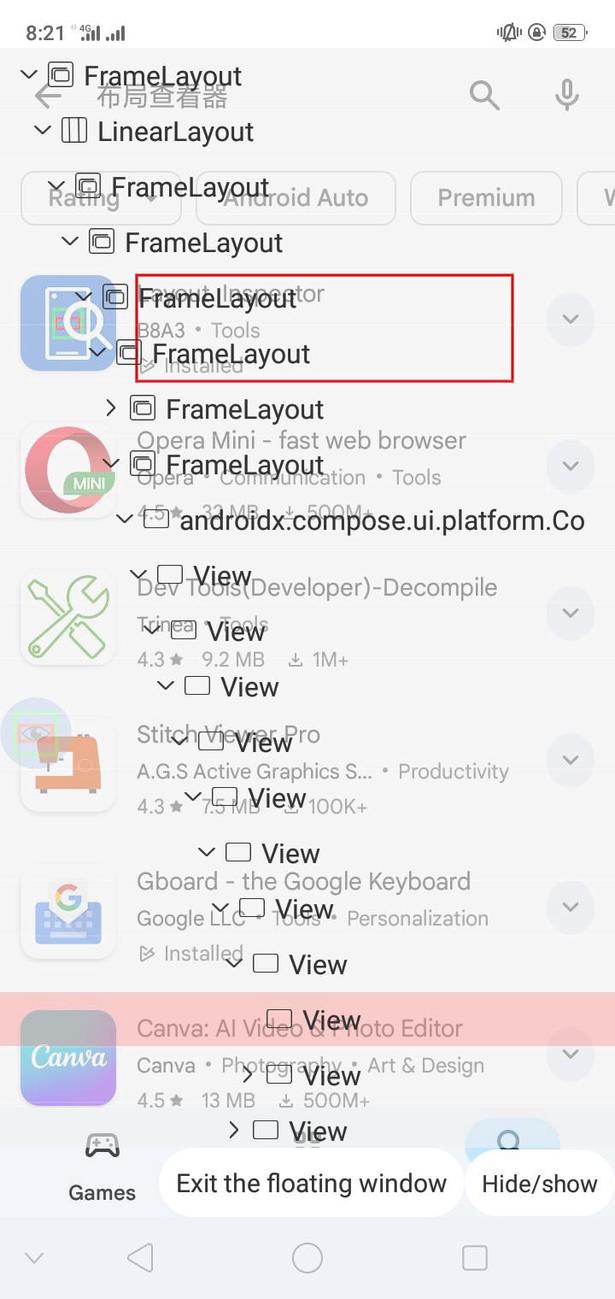

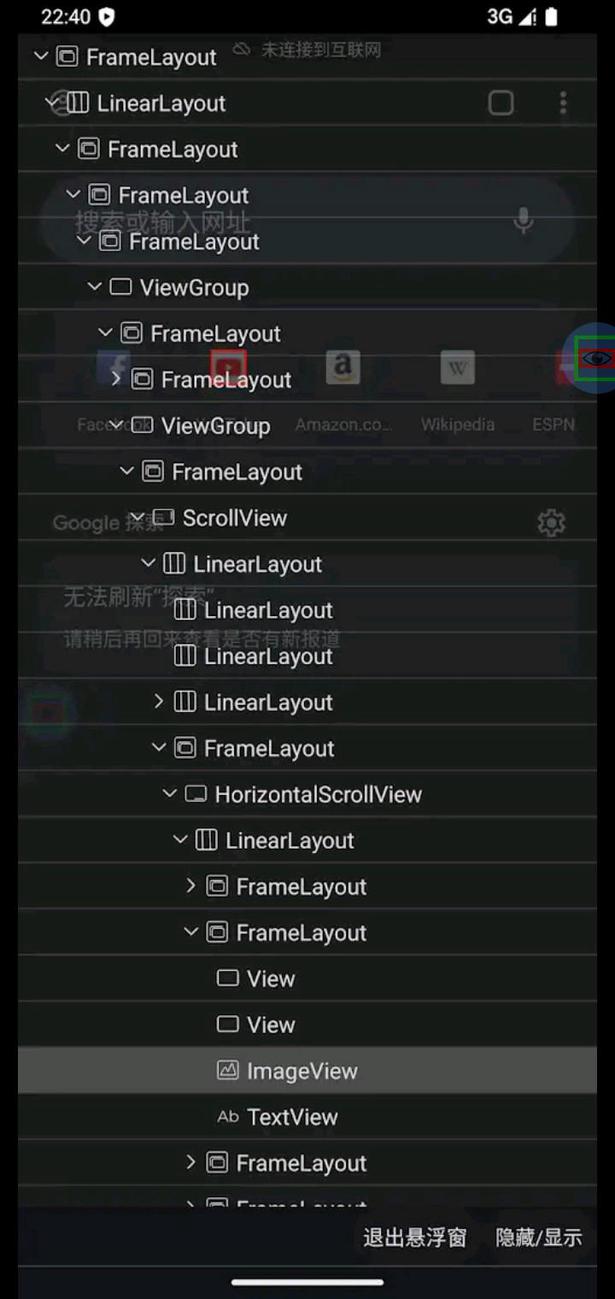

• Device boots normally and runs. Start Layout Inspector, allow Layout Inspector to obtain accessibility permissions and floating window permissions. Click the floating window on the screen and select layout analysis: 1 Layout range analysis 2 Layout hierarchy analysis Click on views in the generated drawing grid to view control information: id; layout; width and height; text, etc. View the hierarchy of controls in the entire screen position in the layout hierarchy
• Permission Statement: 1. Implementation through Google Accessibility API: Capture the screen control tree structure in real time; Highlight the UI elements operated by the user; Generate interface layout analysis report (for developers to debug). 2. Permission control User active authorization: For the first use, you need to enter the system to set the accessibility service permissions of this application manually; Permission scope limitation: Only \"View interface content\", no device control rights (such as simulated clicks, tampering operations). 3. We promise not to collect any information about you
